CONDUCTED NEMP SIMULATOR

Conducted Nuclear EMP(NEMP) Simulator is used to evaluate the performance of power lines or communication EMP filters
installed in nuclear EMP protection facilities.
We have developed the PCI pulse generator and accessories for pulsed current injection test according to
MIL-STD-188-125-1&2 requirement.

    • 이미지

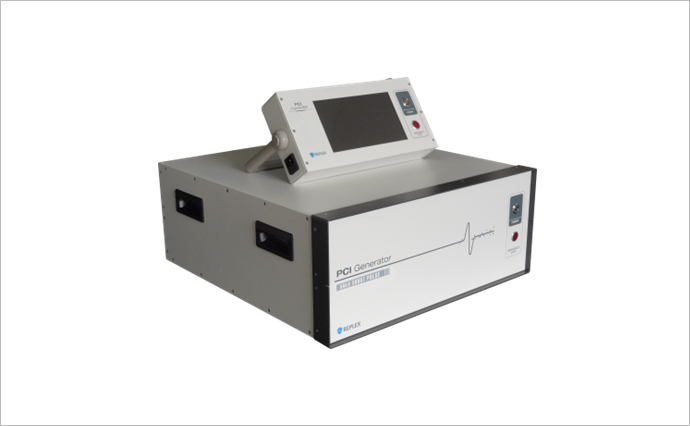

  • E1 Pulse Generator (HEMP-E1-1KA)

    E1 Conductive Pulse Generator

    Current Range : 100A ~ 1.2kA

    Dimension(LxWxH) : 67 × 55 × 23 (cm)

    Weight : 40 (kg)

    • 이미지

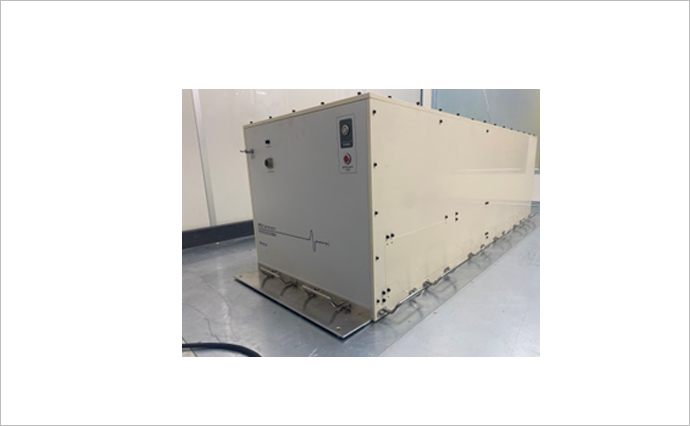

  • E1 Pulse Generator (HEMP-E1-5KA)

    E1 Conductive Pulse Generator

    Current Range : 1kA ~ 5kA

    Dimensions : 187 × 68 × 53 (cm)

    Weight : 450 (kg)

    • 이미지

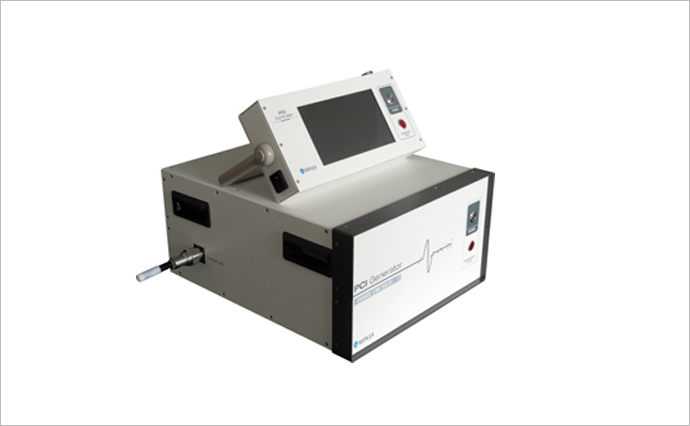

  • E2 Pulse Generator (HEMP-E2-270A)

    E2Conductive Pulse Generator

    Current Range : 20A ~ 270A

    Dimensions : 67 × 55 × 23 (cm)

    Weight : 55 (kg)

    • 이미지

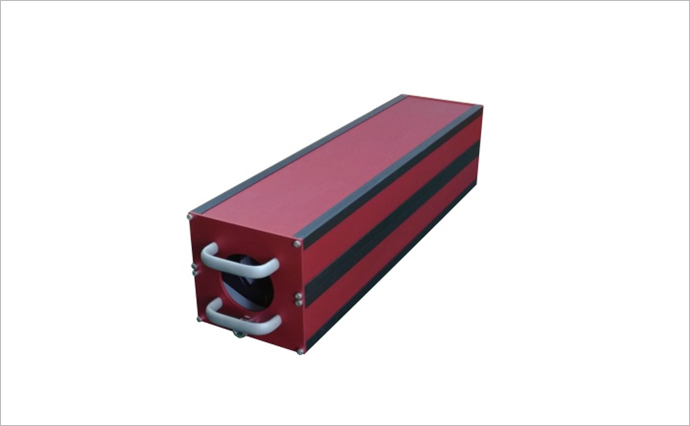

  • Charge Line Pulse Generator
    (HEMP-CLP-450A)

    Charge Line Pulse Generator (For testing RF Antenna Filter)

    Frequency of Charge Line : 30MHz~200MHz

    Current Range : 40A ~ 450A

    Dimensions : 40 × 47 × 23 (cm)

    Weight : 13 (kg)

    • 이미지
  • Coupling device

    (Capacitive and Inductive Coupler)

    Device for injecting into the line with E1 Pulse signals

    Capacitive coupler : Pulse injection through physical contact with the line

    Inductive coupler : Pulse injection without physical contact with the line

    Used for PCI verification tests performed with power applied to the EUT

    • 이미지

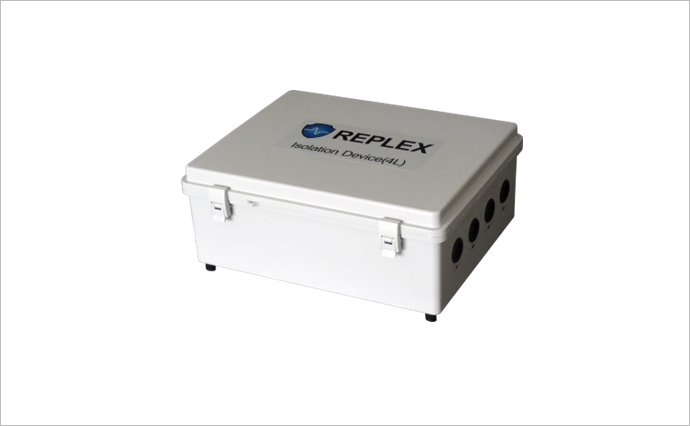

  • Isolation Device

    A device that suppresses the inflow of E1 pulse signals into
    AC commercial power

    4-LINE Isolation device , 1-LINE Isolation device

    • 이미지

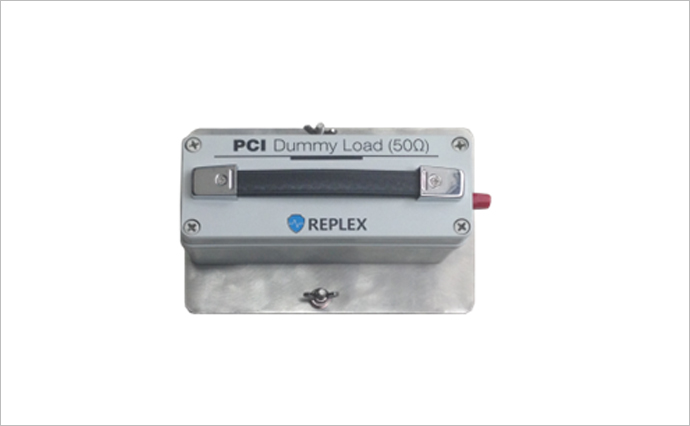

  • Dummy Load

    A device that consumes the pulse current energy injected into
    the EUT

    50Ω Dummy Load, 2Ω Dummy Load
